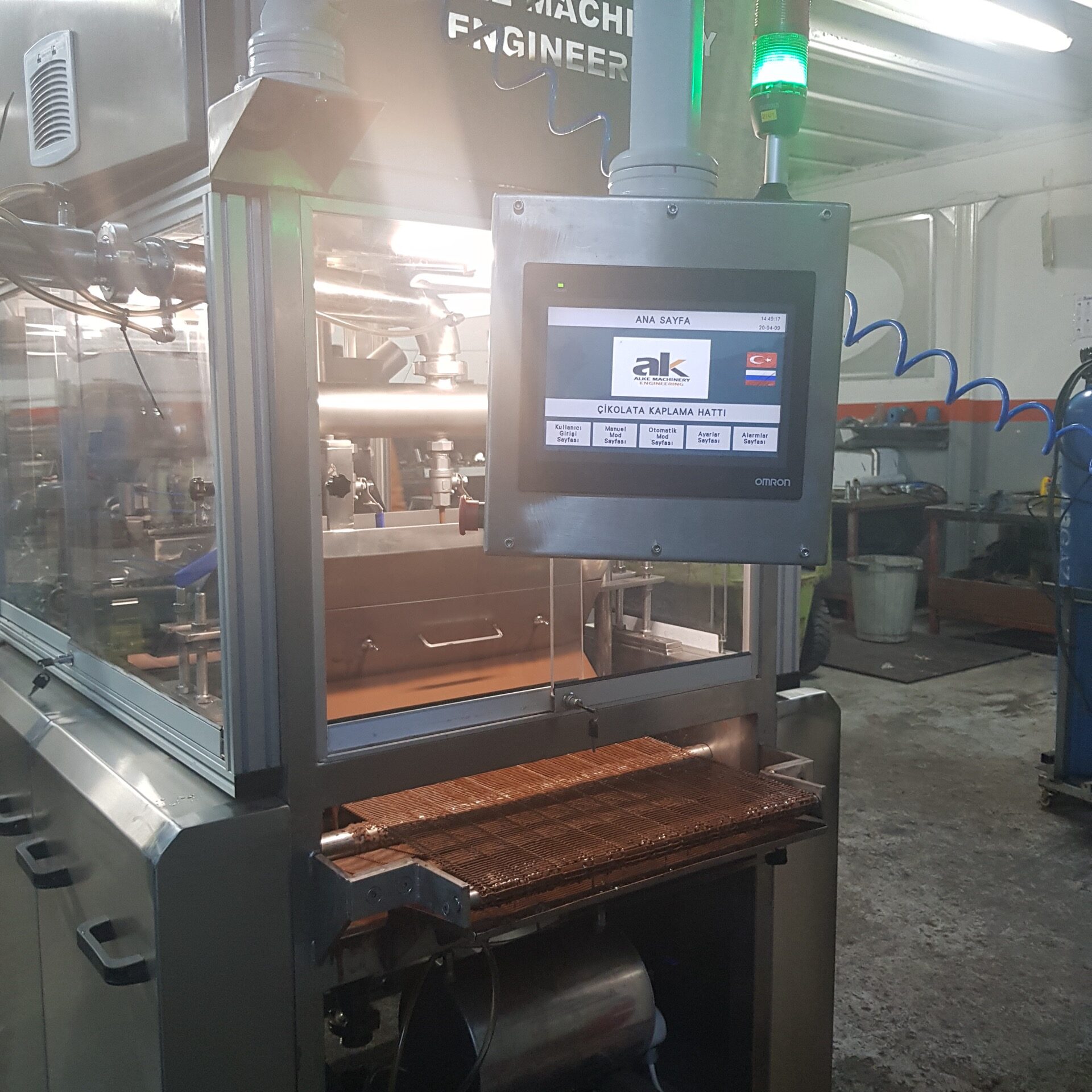

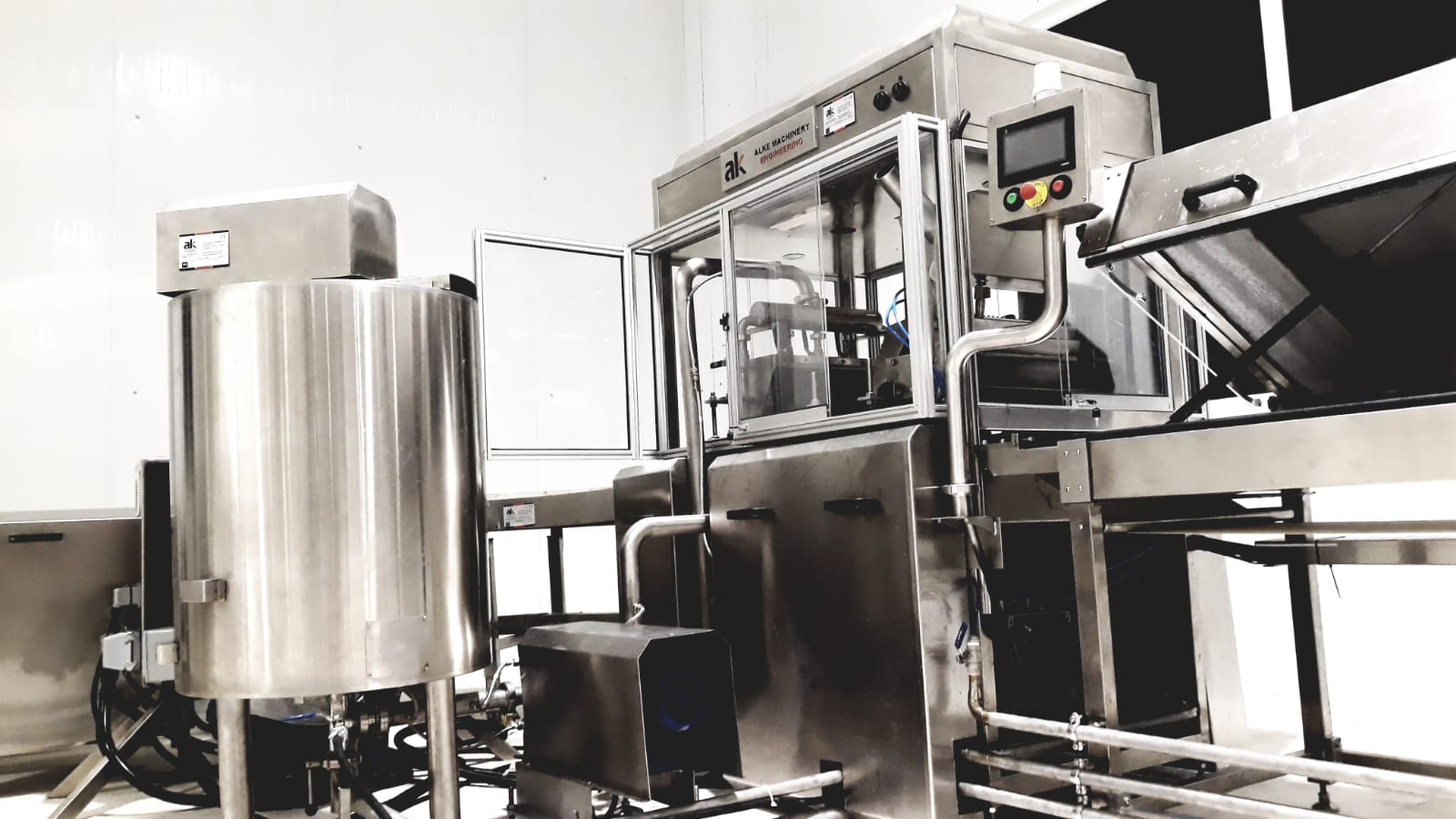

Chocolate Enrobing Line
Our Chocolate Enrobing Line is designed for industrial-scale chocolate coating of confectionery products, snack bars, cookies, biscuits, nuts, and pralines.
Products You Can Manufacture
- Cereal bars and muesli bars
- Protein and energy bars
- Nut bars and croquant bars
- Fudge and caramel bars
- Coconut and fruit bars
- Chocolate-covered wafers and biscuits
- Pralines and nut clusters
- Multi-layer snack bars
- Seasonal or custom-shaped chocolate products
Raw Materials Supported
The chocolate enrobing line supports a wide range of coatings and toppings:
- Milk, dark, and white chocolate
- Cocoa-based compound coatings
- Nut pastes and praline coatings
- Caramel or fudge coatings
- Decorative sprinkles, shredded coconut, nuts, seeds
- Protein or functional chocolate coatings
- Fruit purees for enrobing (optional)
Production Process

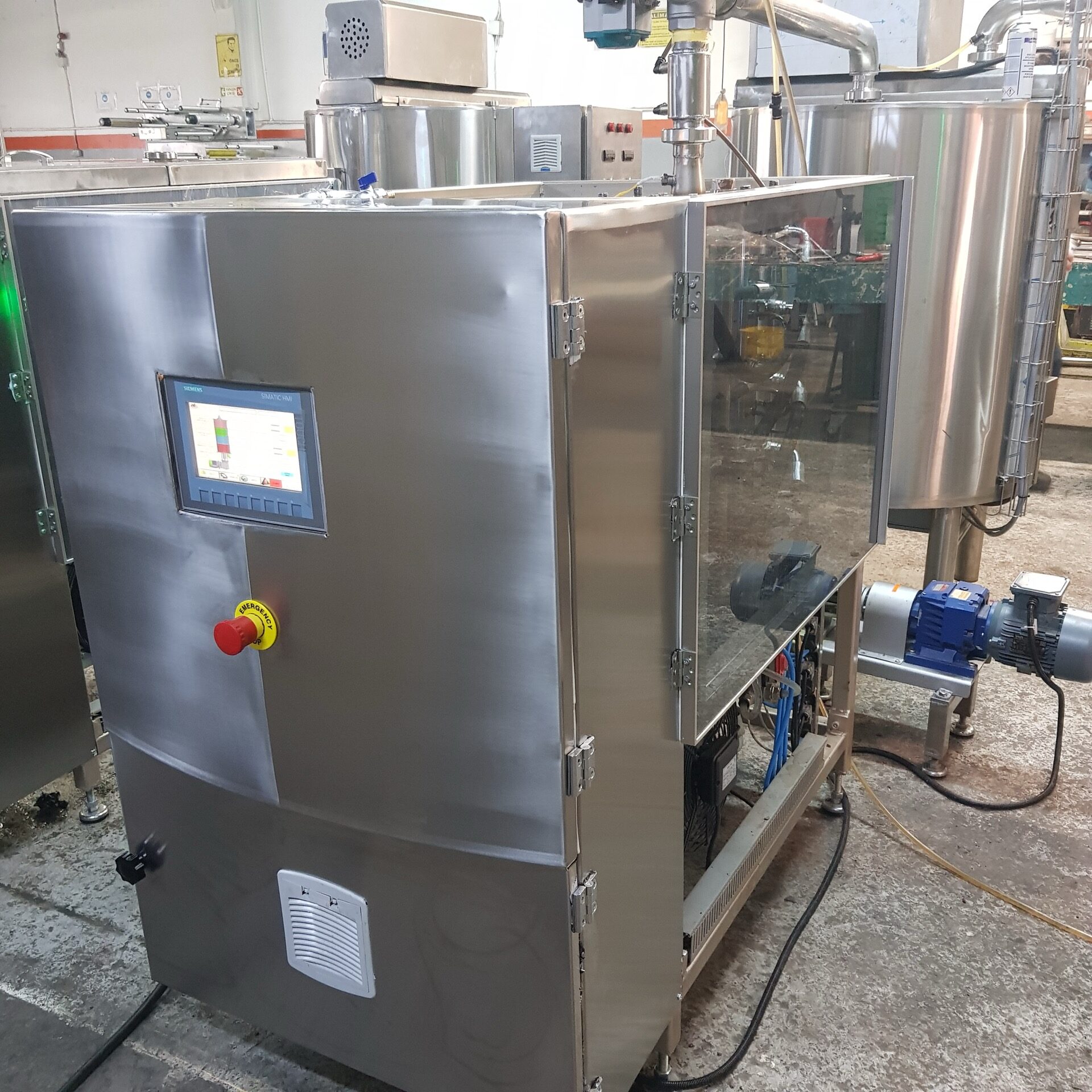

1. Chocolate Melting & Tempering
Chocolate or compound coatings are melted and tempered in a controlled tank to maintain proper viscosity, flow, and shine.
2. Product Feeding
Pre-formed bars, snacks, or confectionery items are automatically fed onto the enrobing conveyor.

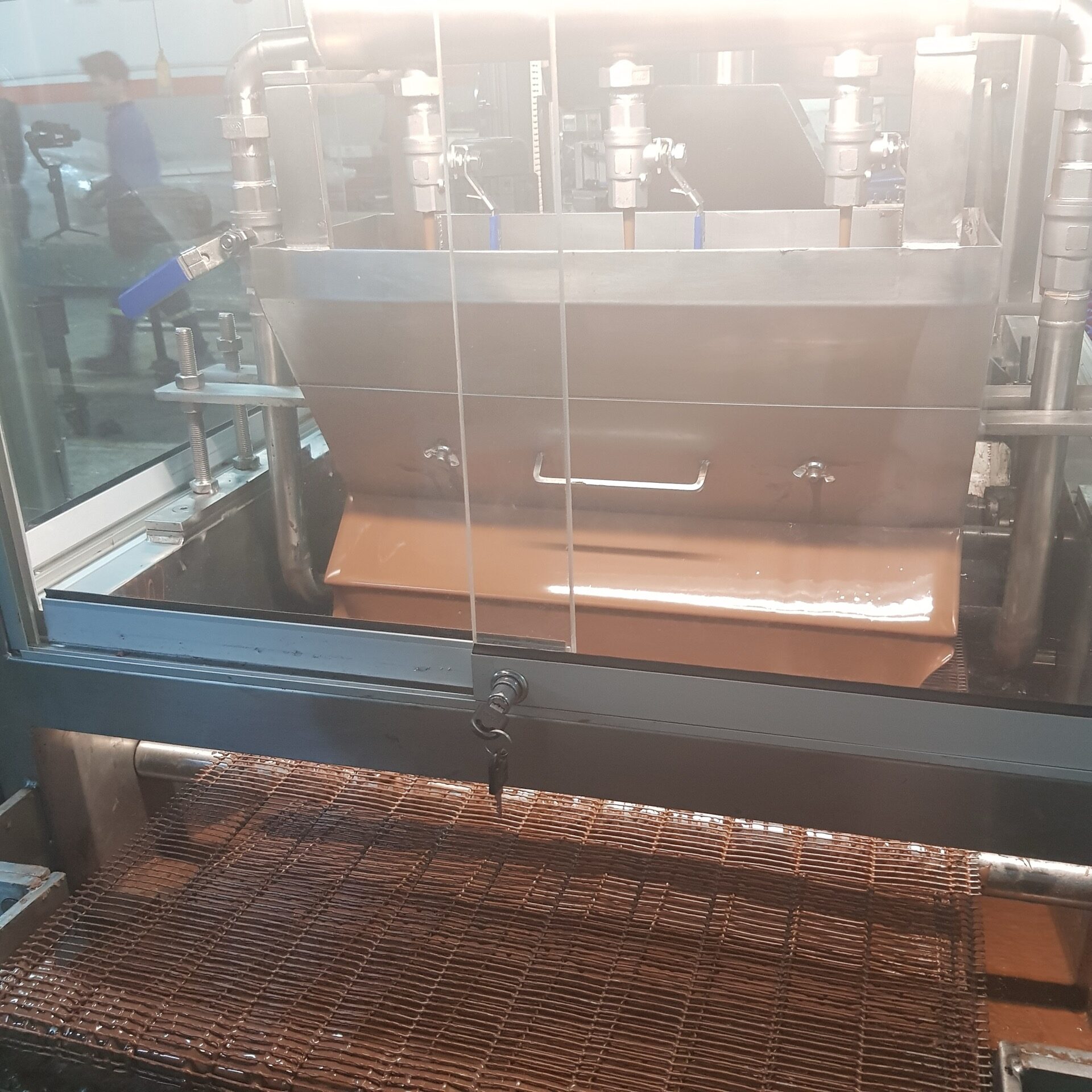

3. Chocolate Enrobing
Products pass under curtain or waterfall chocolate systems, ensuring uniform coating on all surfaces
4. Topping & Decoration (Optional)
Nuts, sprinkles, drizzles, or other decorative toppings can be applied immediately after enrobing.
5. Excess Chocolate Removal
Vibrating or draining conveyors remove excess chocolate for uniform thickness and minimal waste.
6. Cooling & Solidification
The enrobed products move through a controlled cooling tunnel to crystallize chocolate and stabilize the coating.
7. Final Cutting & Packaging
Products can be cut, portioned, and automatically transferred to packaging machines for hygienic wrapping.
Main Features of Our Chocolate Enrobing Line
1
Continuous chocolate enrobing for bars, candies, and snacks
2
Adjustable chocolate curtain thickness
3
Uniform coating on complex shapes
4
Integrated topping and decoration units
5
Precision cooling tunnel for chocolate crystallization
6
PLC-based automation and temperature control
7
Food-grade stainless steel construction
8
Modular and scalable configuration for different production volumes
Production Capacity
150 kg
/hour
300 kg
/hour
500 kg
/hour
1000 kg
/hour and above
We provide custom turnkey chocolate enrobing lines, available in semi-automatic or fully automatic configurations depending on product types and production requirements.
