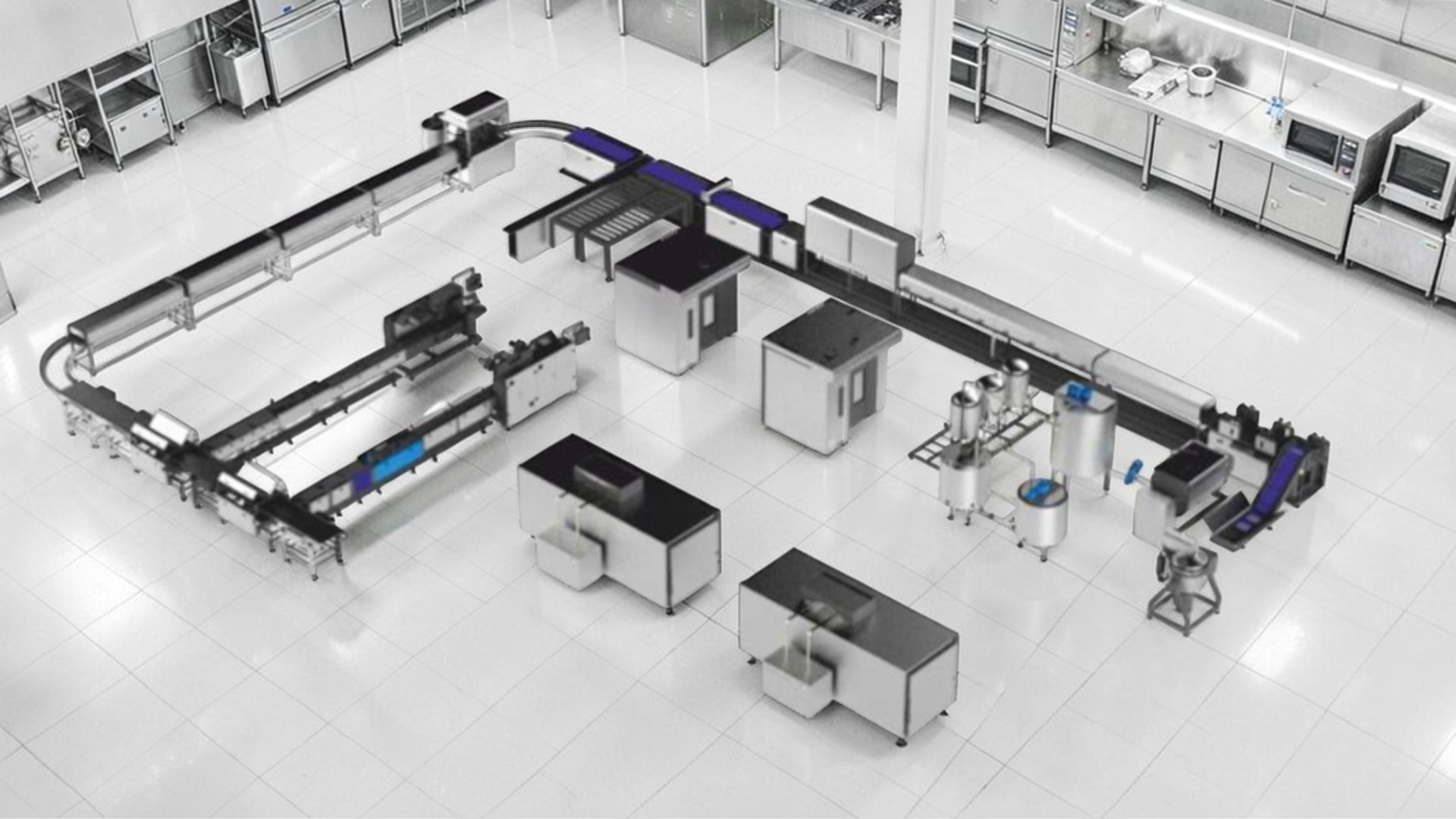

Fruit & Vegetable Bar Production Line
Automatic & Semi-Automatic Natural Snack Manufacturing Solutions
Our Fruit & Vegetable Bar Production Line is designed for continuous and hygienic production of natural snack bars made from fruit purees, vegetable blends, and functional plant-based ingredients.
Products You Can Manufacture
- Fruit bars (date, apple, berry, tropical fruit bars)
- Vegetable-based snack bars
- Fruit & vegetable blended bars
- Sugar-free natural bars
- Vegan and clean-label snack bars
- Fiber-rich wellness bars
- Kids fruit snacks
- Cold-pressed style fruit snacks
- Single-layer and multi-layer fruit bars
- Chocolate or coconut coated fruit bars
Raw Materials Supported
Our Fruit & Vegetable Bar production line supports a wide variety of natural ingredients:
- Fruit purees and fruit pastes
- Dried fruits (dates, apricot, raisin, apple, pineapple, etc.)
- Vegetable powders and fibers
- Freeze-dried fruit powders
- Natural sweeteners and fruit concentrates
- Pectin and plant-based binders
- Coconut and functional fibers
- Seeds and superfood ingredients
- Natural syrups and fruit extracts
Production Process
1. Raw Material Preparation
Fresh, frozen, or dried fruits and vegetables are processed into puree or paste consistency using preparation equipment.
2. Blending & Homogenization
Fruit pulp, vegetable fibers, and natural binders are mixed to obtain a uniform structure.
3. Low-Temperature Forming
The mixture is gently formed into a continuous slab using pressure-controlled forming technology to protect natural ingredients.
4. Moisture Balancing / Drying
Products pass through a drying or conditioning tunnel to achieve optimal texture and shelf stability.
5. Cooling & Stabilization
Controlled cooling ensures structural strength and prevents deformation.
6. Cutting

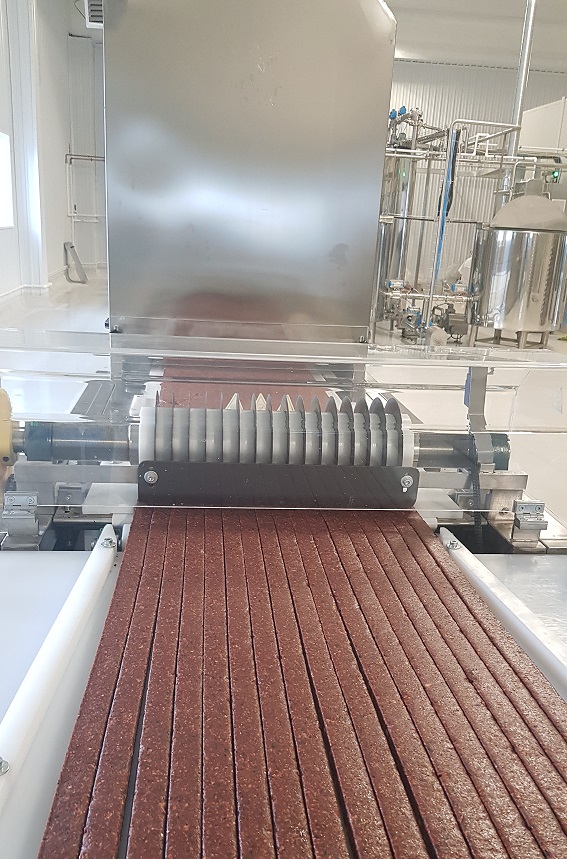

Precision longitudinal and cross cutters divide the slab into consistent bar dimensions.
7. Optional Coating
Bars can be coated with chocolate, coconut flakes, or natural glaze systems.
8. Packaging
Finished products are automatically transferred to the packaging system.
Main Features of Our Fruit & Vegetable Bar Production Line
1
Fully automatic or semi-automatic production options
2
Processing suitable for high-moisture formulations
3
Gentle mixing to preserve natural structure
4
Adjustable density and bar thickness
5
Precise cutting and portion control
6
High production efficiency with minimal product waste
7
PLC-based intelligent control system
8
Food-grade stainless steel hygienic design
9
Modular and scalable configuration
Production Capacity
Capacity options for our fruit and vegetable bar production line:
150 kg
/hour
300 kg
/hour
500 kg
/hour
1000 kg
/hour and above
Custom turnkey solutions are available for both semi-automatic and fully automatic installations, tailored according to product formulation and production requirements.
